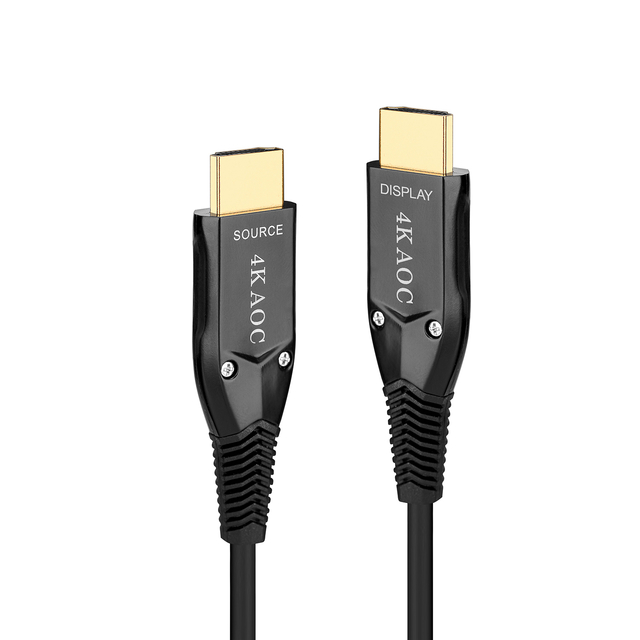

High Speed Active Optical Cable Fibre Optic 4K 2.0 premium HDMI Cable
Active Optical Cable (AOC) is a cabling technology that accepts same electrical inputs as a traditional copper cable, but uses optical fiber between the connectors to extend HDMI signals with zero loss or latency. The AOC 100 meter (328 feet) HDMI 2.0 cables with Ethernet are designed with premium craftsmanship to deliver UltraHD with a super bandwidth of 18 Gbps.
These latest specs from HDMI deliver uncompressed 4K resolutions with 32 audio channels for a multi- dimensional immersive audio and up to 1536 kHz sample frequency to attain highest audio fidelity. It supports sub-sampling rates of 4:4:4, 4:2:2 & 4:2:0 YUV with deep color and HDR can be achieved when integrated with compatible HDMI 2.0 devices. This AOC cable is resistant to EMI and RFI interference providing you with noise-free video and audio with less copper and more fiber optic. The cable gets its power via USB which can be connected near the HDMI source device which uses USB port to get its power.
Features:
HDMI® AOC- Active optical cable –30-200m
Premium video quality up to 4096x2160p/50Hz or 60Hz
Bandwidth up to 18Gbps (6Gbps per channel)
Color Sub-sampling of 4:4:4, 4:2:2, 4:2:0 with Deep Color & HDR
Integrated USB connector draws power from the display
Supports resolutions up to: 4K@24/30/50/60Hz & 1080p/60 & 3D
PC resolutions: WUXGA 1920x1200,
HDTV: 480p, 720p, 1080i & 1080p/60 & 3D formats
EMI/RF free for clear signal transmission
Up to 32 audio channels for a multi-dimensional immersive audio
Up to 1536kHz audio sample frequency for the highest audio fidelity
Support for the wide angle theatrical 21:9 video aspect ratio
Dynamic synchronization of video and audio streams
Supports CEC extensions
Low power consumption
Supports 3D and 4Kx2K
Support color depths to 48 bits
HDCP 2.2 compliant
Available in lengths of 30m, 50m ,100m and 200m
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Shielding & Protection:
*NOTICE*
Side labeled "Tx" should be connected to the source. Side labeled "Rx" should be connected to the sink (display).
