0.96 oled display Blue I2C IIC Serial 128x64 OLED LCD LED ssd1309 0.91 inch oled display Module for Arduino Raspberry Pi Display
0.96 oled display Blue I2C IIC Serial 128x64 OLED LCD LED ssd1309 0.91 inch oled display Module for Arduino Raspberry Pi Display

5PCS 0.96 inch oled IIC Serial White OLED Display Module 128X64 I2C SSD1306 12864 LCD Screen Board for Arduino

 0 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.141742

{{detail_data.prodInfo.name}}

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

  •
$   14.99
0Reviews
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}
{{ item.num }} pieces
$ {{ item.price }}
{{item.name}}* {{item.values[0].value}}
{{sku.value}}
Quantity:
{{detail_data.displayed_price.unit_type_name}}(s)
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
To Be Negotiated
to United States Change
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details
Total Price:
$ 74.95
Shipping calculated at checkout.
Weight:
{{Number(packInfo.weight).toFixed(2)}} KG
Package:
{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm
Returns:
Read details
Add to Wish list
  • Description
    • Applications: 0.96 inch OLED module for showing graphical and textual information directly on your micro-controller projects;
    It supports many chips: compatible with Arduino Mega, Raspberry pi, 51 MCU, STIM 32, etc.
    Resolution: 128 x 64; View angle: more than 160 degree; Support voltage: 3.3V-5V DC; Power consumption: 0.04W during normal operation, full screen lit 0.08W
    Embedded driver IC: SSD1306; Communication: I2C/IIC Interface, only need 2 I/O ports; Compatible with MMDVM, Pi-Star, and it is compatible with Raspberry pi
    Self-luminous: needn't backlight, the display can self-luminous; It has high contrast, bright and crisp dots, even tiny fonts quite readable
    About fonts: no embedded fonts inside the OLED controller, user can create the fonts through the font generation software
    5PCS 0.96 inch oled IIC Serial White OLED Display Module 128X64 I2C SSD1306 12864 LCD Screen Board for Arduino5PCS 0.96 inch oled IIC Serial White OLED Display Module 128X64 I2C SSD1306 12864 LCD Screen Board for Arduino5PCS 0.96 inch oled IIC Serial White OLED Display Module 128X64 I2C SSD1306 12864 LCD Screen Board for Arduino5PCS 0.96 inch oled IIC Serial White OLED Display Module 128X64 I2C SSD1306 12864 LCD Screen Board for Arduino5PCS 0.96 inch oled IIC Serial White OLED Display Module 128X64 I2C SSD1306 12864 LCD Screen Board for Arduino5PCS 0.96 inch oled IIC Serial White OLED Display Module 128X64 I2C SSD1306 12864 LCD Screen Board for Arduino5PCS 0.96 inch oled IIC Serial White OLED Display Module 128X64 I2C SSD1306 12864 LCD Screen Board for Arduino
    5PCS 0.96 inch oled IIC Serial White OLED Display Module 128X64 I2C SSD1306 12864 LCD Screen Board for Arduino
    5PCS 0.96 inch oled IIC Serial White OLED Display Module 128X64 I2C SSD1306 12864 LCD Screen Board for Arduino5PCS 0.96 inch oled IIC Serial White OLED Display Module 128X64 I2C SSD1306 12864 LCD Screen Board for Arduino
  • Specification

    • 128*64 LED display module for Arduino, supports many control chip.

    Fully compatible with for Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
    Ultra-low power consumption: full screen lit 0.08W
    Super high brightness and contrast are adjustable
    With embedded driver/controller
    Interface type is IIC
    Pin Definition: GND, VCC ,SCL, SDA
    Pins: 4 pins
    Voltage: 3V ~ 5V DC
    Working Temperature: -30 ° ~ 70 °
    Drive Duty: 1/64 Duty
    High resolution: 128 * 64

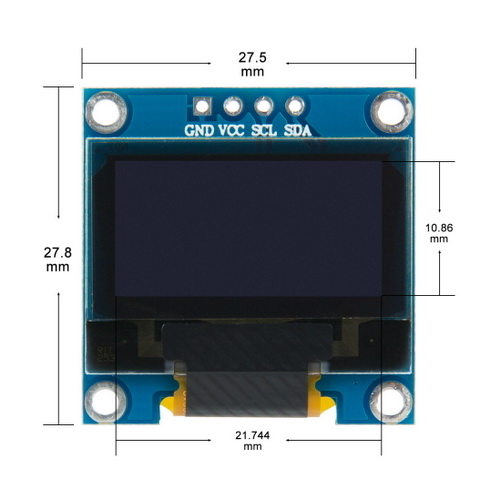

    Panel Dimensions: 26.70* 19.26* 1.85mm/1.03*0.76*0.07 inch(approx)
    Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx)
    Driver IC: SSD1306
